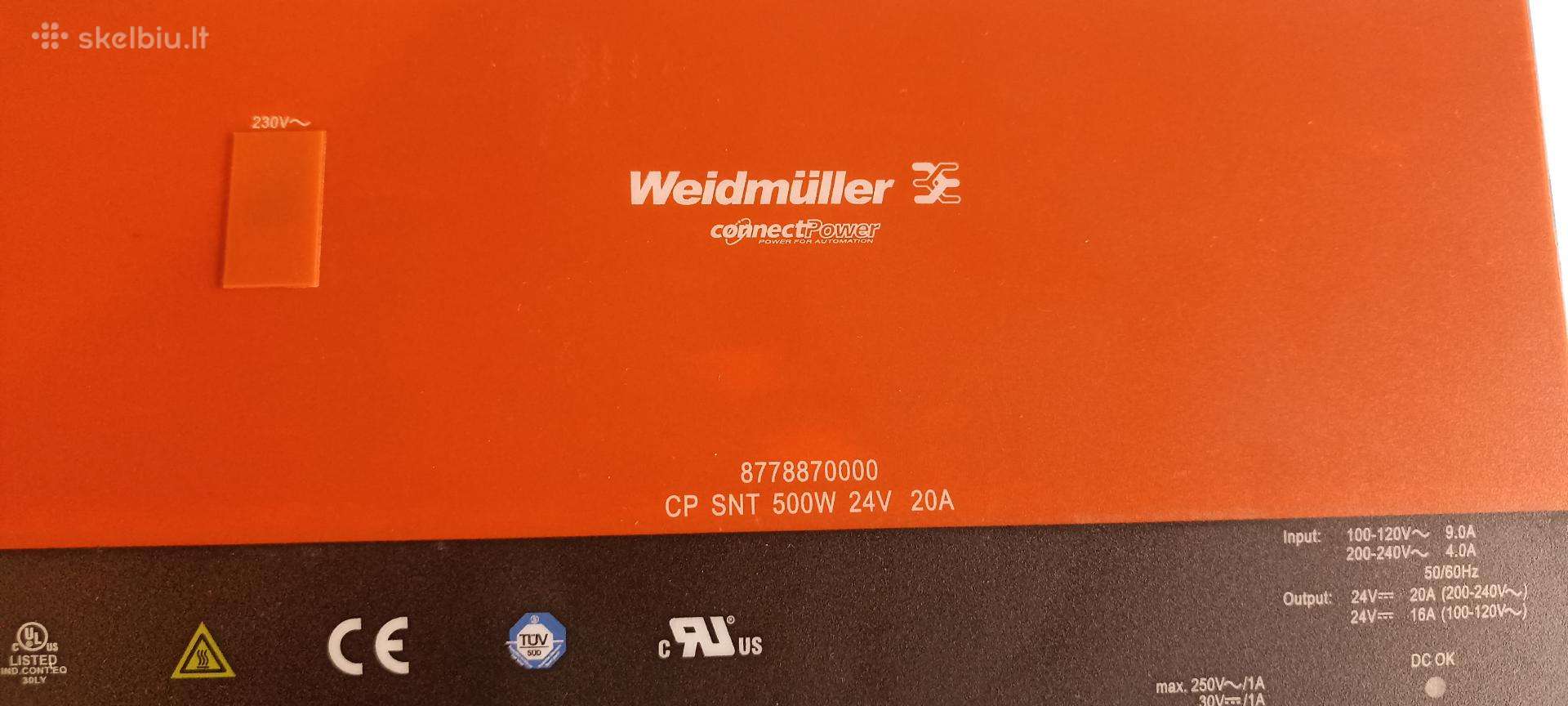

24v maitinimo šaltinis weidmuller (500w) su

Parduodu naudotą 24v 500W maitinimo bloką weidmuller (20A). Tvirtinimas ant din bėgelio

CP SNT 500W 24V 20A

Continuous output current @ UNominal 24 A @ 45 C, 22.7 A @ 55 C, 15 A @ 70 C
Nominal output current for Unom 20 A @ 60 C
Output current 20A
Output power 500 W
Output voltage type DC
Output voltage, max. 29.5 V
Output voltage, min. 22.5 V
Output voltage, note (adjustable via potentiometer on front)
Overload protection Yes
Parallel connection option yes, max. 3
Rated output voltage 24 V DC 1 %
Residual ripple, breaking spikes < 50 mVPP @ 24 V DC, IN
Wire connection method Screw connection

AC failure bridging time @ Inom > 20 ms @ 230 V AC / > 20 ms @ 115 V AC
Current limiting > 120% IN
Degree of efficiency 90 % at 230 V AC / > 85 % at 115 V AC
Housing version Metal, corrosion resistant
Indication Operation, green LED
Mounting position, installation notice Horizontal on TS35 mounting rail. 50 mm of clearance at top & bottom for air circ. Can mount side by side with no space in between.
Power factor (approx.) > 0.98 @ 230 V AC / > 0.99 @ 115 V AC
Protection against over-heating Yes
Protection against reverse voltages from the load 3035 V DC
Protection degree IP20
Short-circuit protection Yes
