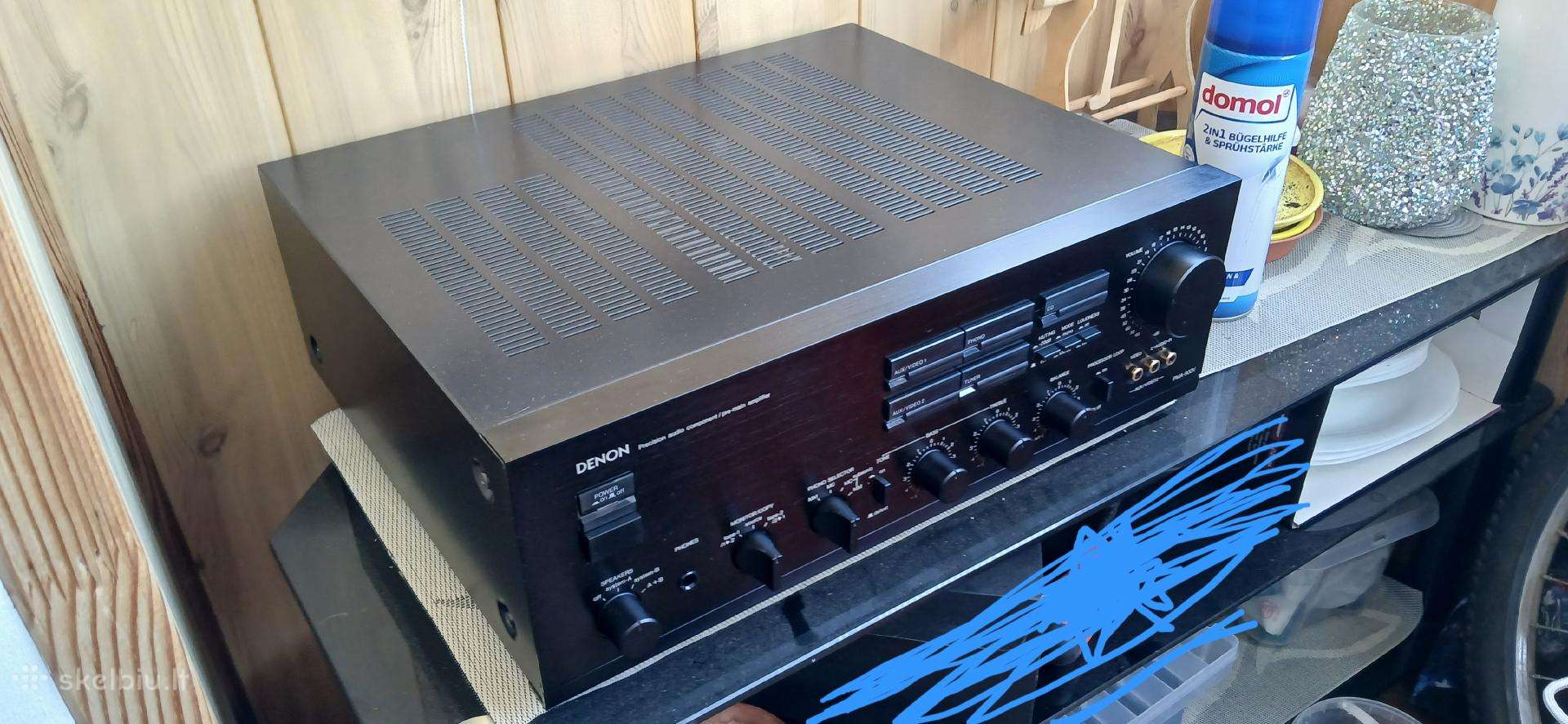

Denon pma 900v

Orginalus denon pma 900v

Model: PMA-900V
Type: Integrated amplifier
Years of manufacture: 1986 -1987
Made in: Japan
Color: Champagne or Black
Remote control: -
Power consumption: 220 watts
Dimensions: W x H x D: 434 x 157 x 397 mm
Weight: 11.6 kg
Original price approx.: 1'400 DM


Connections:
Phono
CD

Tuner
Video/Aux
Tape 1 In/Out
Tape 2 In/Out
DAT

Processor Loop In/Out
Number of Analog Outputs:
Tape Rec 1, 2:
DAT:
Pre out:
Headphones:
2 pairs of speakers

Technical Data

Continuous power (at distortion factor)
8 Ohm: 2x 120 W (20 Hz - 20'000 Hz)
4 Ohm: 2x 200 W (1 kHz, DIN)
Dynamic power
8 Ohm: 2x 160 W
4 Ohm: 2x 240 W
2 Ohm: 2x 280 W
Distortion factor: 0.003 % at 20 Hz - 20 kHz
Frequency response: 5 Hz - 150 kHz
Signal-to-noise ratio: 107 dB
Adjacent channel separation: 78 dB
Intermodulation Distortion: 0.003 %

Special Features

Discrete and balanced design with high quality components.
8 final transistors with 130 Watt power each provide sufficient power security and high damping factor
2 X 24 000 µF electrolytic capacitor package for high dynamic and impulse performance
Elaborate tone control, loudness, CD direct and complete circuit suppression of the tone control in the middle position of the controls, thus extreme reduction of phase distortion
Extremely short signal paths for small intermodulation distortions
Magnetically shielded, large toroidal transformer
2 pairs of loudspeakers can be connected and switched separately

Elaborate electronic power and overload protection within milliseconds
Short-term 2 Ohm stable
3 video signals can be switched with the input selection with
Front AV input
Large Lp connectors
