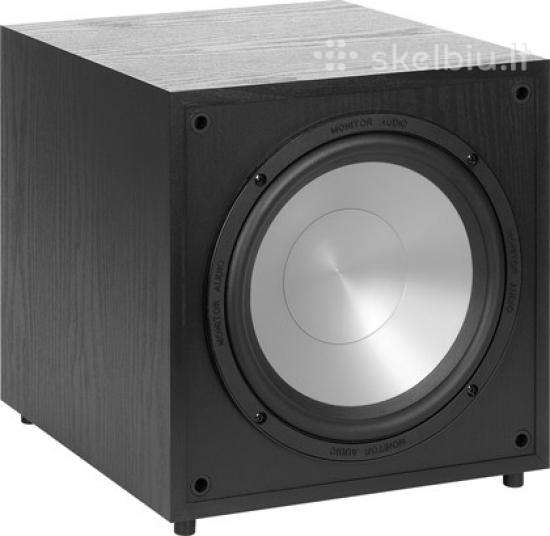

Monitor Audio Mrw-10 Subwoofer

MRW-10 kietojo korpuso dėžė pagaminta iš 18 mm storio MDF, kurioje įmontuotas 25 cm skersmens MMP II žemų dažnių garsiakalbis. Jo galinis vamzdis užtikrina optimalų 100 W D klasės integruoto galingo stiprintuvo veikimą.

Stovis: 9/10

MRW-10 taip pat siūlo įvairias namų kino optimizavimo galimybes. Galima rinktis iš trijų išankstinių nustatymų (Muzika, Filmas, Poveikis), kurie leidžia pritaikyti parametrus patalpos sąlygoms ir užtikrinti lanksčią naudojimo patirtį su DSP.
Techninė specifikacija

Tipas: Užkraunamas žemų dažnių garsiakalbis su galine anga
Stiprintuvas: D klasės
Garsiakalbiai: 1 x 25 cm ilgo žingsnio MMP II žemų dažnių garsiakalbis

Matavimai

Dažnių ruožas: 50 - 120 Hz
Fazės valdymas: 0 iki 180 laipsnių
Galia: 100 W RMS

Jungtys

2 x stereo RCA
1 x LFE RCA jungtis
12 V paleidimo įtaisas

Bendroji informacija

Matmenys (su grotelėmis): (A x P x G) 336 x 320 x 351 mm
Svoris: 10,5 kg

Monitor Audio Monitor MRW-10 10' Subwoofer 100W

The Monitor MRW-10s rigid cabinet is made from 18 mm thick MDF and accommodates a 10' long-throw MMP II bass driver and a rear port that allows optimal output from the powerful on-board 100 W class D power amplifier.

The Monitor MRW-10 boasts an array of features dedicated to optimising a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility.

Features:

10' MMP II long throw subwoofer driver
Rigid MDF cabinet with rear porting
Powerful 100 W Class D power amplifier – high efficiency and punchy bass delivery
Switch mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
DSP processing with all control features and crossover performed in the digital domain
Three pre-set EQ mode settings. Music / Movie / Impact
12 V trigger – provides switching control from AV amp, processor, or home automation control system
18 mm thick MDF construction

Specification:

System Format - Rear ported bass reflex cabinet
Lower Frequency Limit - 30 Hz (-6 dB)
Upper Frequency Limit - Variable 50 – 120 Hz @ 24 dB/Octave
Amplifier Output - 100 W RMS
Amplifier Classification - Class D with Switch mode PSU
Bass EQ Profiles - Music / Movie / Impact
Phase Control - 0 – 180
Auto Sensing - >3.5 mV
Input Level Requirements - Standby after approximately 15 minutes if no signal sensed
Drive Unit Complement - 1 x 10' MMP II long throw driver
Input Impedance - >20 K ohms
Mains Input Voltage - 110 – 120 Vac – 50 – 60 Hz, 220 – 240 Vac – 50 – 60 Hz. Selectable
Fuse Specification - 110 – 120 VAC – T4AL/250VAC, 220 – 240 VAC – T4AL/250VAC
Connection - 2 x Stereo RCA, 1 x LFE RCA connection, 12 V trigger (3.5 mm mono mini-jack)
External Dimensions (Including Grille and Feet (H x W x D) - 336 x 320 x 350.6 mm (131/4 x 125/8 x 1313/16')
Standby Power Consumption - <0.5 w='' standby='' li=''>
Weight - 10.54 kg (23 lb 4 oz)
