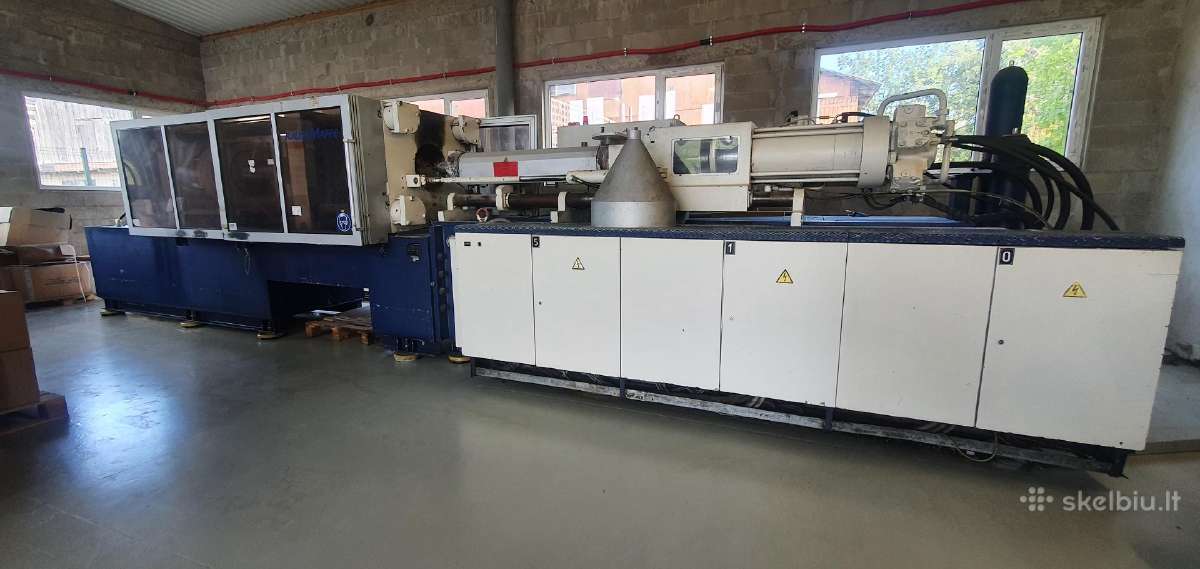

Plastiko liejimo staklės Krauss Maffei 350-1650b3

Krauss Maffei KM 350 - 1650 B3/MC3
Details:
Manufacturer: Krauss Maffei
Type of machine: KM 350 - 1650 B3/MC3
Year: 1997
Delivery terms: Immediately
Terms of Delivery: EXW
Location: Lithuania Vilnius
Controlversion: MC3
Screen text: German
Price: on request
Technical details:
Clamping unit:
Clamping force: 3500 kN
Mould opening force, max.: 234 kN
Travel force movable platen Opening: 97 kN
Travel force movable platen Closing: 91 kN
Size of mould platens (h x v): 1060 mm x 980 mm
Distance between tie bars (h x v): 710 mm x 630 mm
Mould opening stroke: 920 mm
Mould height min.: 380 mm
Max daylight: 1300 mm
Hydraulic ejector - stroke: 250 mm
Ejector force forward/backward: 94 kN
Injection unit:
Screw diameter: 70 mm
Injection pressure: 1650 bar
Stroke volume: 2151 ccm
Shot weight, PS: 692 g
Injection rate: 769 ccm/s
Screw speed: 170 1/min
Plasticising rate max.: 43 g/s
Nozzle pressure: 110 kN
Electric and Hydraulic Equipment
Nominal capacity of pump motor: 75 kW
Installed heating capacity: 28,6 kW
Adjustable barrel heating zones: 6
Dry cycle number: 1200 1/h
Reservoir capacity: 1840 ltr.
Dimensions und weights
Dimensions of the machine ca.: 10,0 m x 1,80 m x 2,30 m
Total machine weight: 22000 kg
Dimension clamping unit: 5,10 m x 1,80 m x 2,30 m
Clamping unit - weight: 16000 kg
Dimension injection unit: 4,00 m x 1,60 m x 1,40 m
Injection unit - weight: 6000 kg

Additional information:
New pumps
The machine is in working order, but has not been used for a long time

Sold as a whole or in parts
